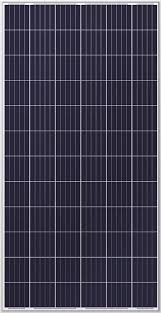

Solar Panels
- 210W Polycrystalline Module,
- Tianwei New Energy
- TW210P60-FA2,
- Anodized Aluminum Alloy,
- Silver
- 10 years Guarantee
- 25 years Performance Guarantee
- Polycrystalline
- High-performance modules with reliable quality
- IP65
- Grade A
TIANWEI, a company with over 50 years' history, has well established a fully integrated PV industry chain (silicon-wafer-cell-module).
Utilizing first class equipment and high quality components with industry proven technology, plus our quality oriented philosophy
Industry leading power output warranty:
After 25 years, the product's output power shall not be less than 83% of the minimum output power as set forth in this specification.
Compared with the industry standard 10 years 90% and 25 years 80% power output guarantee, TIANWEI's semi-linear performance guarantee provides you with considerable added value.
| LENGTH / UNIT (CM) | 164 |
| WIDTH / UNIT (CM) | 99.2 |
| DEPTH/HEIGHT / UNIT (CM) | 4 |
| WEIGHT / UNIT (KG) | 19.5 |
| TYPE | Polycristallin |
| POWER / UNIT (WATT) | 240 |
| NUMBER OF CELLS | 60 |
| BRAND | TIANWEI |
| EFFICIENCY (%) | 14.75 |
| CELL EFFICIENCY (%) | 16.75 |
| SOLAR PANEL GUARANTEE HARDWARE | 10 Years |
| SOLAR PANEL PRODUCTION GUARANTEE | 25 Years |
| VOLTAGE | 30V |
| RATED MAXIMUM POWER (PMAX) | 240 W |
| MAXIMUM POWER VOLTAGE (VMPP) | 30V |
| MAXIMUM POWER CURRENT (IMP) | 8A |
| SHORT CIRCUIT CURRENT (ISC) | 8.38A |
| OPEN CIRCUIT VOLTAGE (VOC) | 37.6V |
| MAXIMUM SYSTEM VOLTAGE | DC 1000 V (tuv) |
| POWER TOLERANCE RANGE | +-3% |
| MAX. SERIES FUSE RATING (IR) | 15A |
| MODULE EFFICIENCY (%) | 14.5 |
TIANWEI, a company with over 50 years' history, has well established a fully integrated PV industry chain (silicon-wafer-cell-module).
Utilizing first class equipment and high quality components with industry proven technology, plus our quality oriented philosophy
Industry leading power output warranty:
After 25 years, the product's output power shall not be less than 83% of the minimum output power as set forth in this specification.
Compared with the industry standard 10 years 90% and 25 years 80% power output guarantee, TIANWEI's semi-linear performance guarantee provides you with considerable added value.
- 10-year Guarantee
- 25 years’ performance guarantee
- Polycrystalline
- High-performance modules with reliable quality
- IP65
- Grade A
Product Descriptions
Luminous Solar panels are made from a block of silicon, consisting of a large number of crystals. It is highly efficient Solar panels for solar power generation which comes at best price with IEC certification 25 years performance warranty and 1 year manufacturer warranty.
Key Features
- High efficiency Poly Crystalline Silicon Solar Cells provides optimum output
- Anti-Reflecting Coating and Back Surface Field Structure to improve cell conversion efficiency.
- Multi-layer encapsulation for better module protection
- Strong lightweight Aluminum frame design offers high torsion resistance against wind and snow loads.

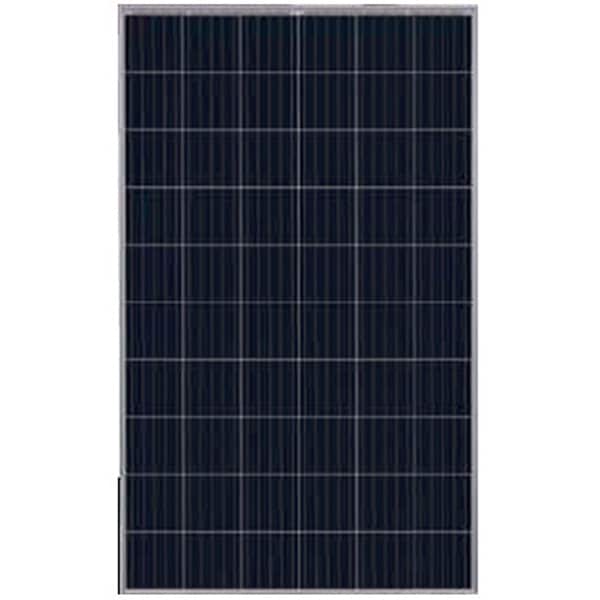

Model Name | Solar Panel 250W /18V |
Output Power | 250 Watts |
Operating Voltage | 24 Volt |
PV Panel Type | Poly Crystalline |
Manufacturer warranty | 1 year on Manufacturing defects |
Performance Warranty | 25 Years |
Key Features | A+ Grade, anti PID Poly Crystalline cells Cell Conversion efficiency > 16% Compliance to IEC standards |
Technical details
Voltage at Max Power (Vmax) | 30.20 V |
Open Circuit Voltage (Voc) | 37.42 V |
Current at max power (Imax) | 8.31 amps |
Short Circuit Current (Isc) | 8.85 amps |
Dimensions (in cm) | 167 * 5 * 101 |
Features
Advanced EVA encapsulation to give better protection to modules
Best in Class conversion efficiency
Anti reflective coating for more light absorption
Optically, mechanically and electrically tested
High strength Aluminium frame design to offer high torsion resistance
Compliance to IEC standards"
Luminous Solar panels are made from a block of silicon, consisting of a large number of crystals. They are highly efficient Solar panels for solar power generation which come at best price with IEC certification and 25 years performance warranty.
Excellent Low-light performance
Use of high quality glass and solar cell surface coating allow for excellent performance even in low-light conditions on cloudy days, mornings and evenings.
Advance EVA Encapsulation
EVA (ethyl vinyl acetate) is used encapsulate material. They are inserted between the solar cells and the top surface and the rear surface for protection. Luminous Solar Panel comes with Multi layer encapsulation that provides better module protection.
Severe Weather Resilience
Luminous Solar Panel offers high torsion resistance against wind load and snow loads. These are waterproof and corrosion resistant.
Best in Class Efficiency
Best in class module conversion efficiency through advanced innovative cell technology. This ensures optimum solar power generation that provides value for money.
PID resistance Technology
PID stands for potential-induced degradation. Caused by stray currents triggered by certain climate conditions; the phenomenon can cause substantial power loss but with PID Resistance Technology, Luminous Solar Panels displays no PID.
